FR-D700 | FR-D800 — Compact, Smart & Energy-Efficient Drive Solutions

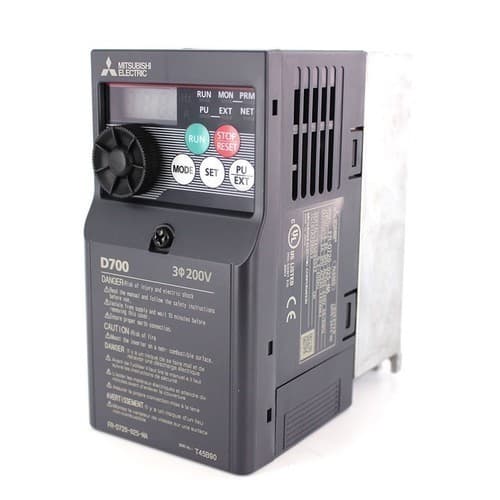

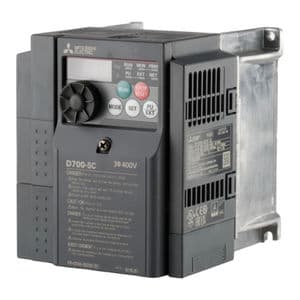

MITSUBISHI FR-D700 SERIES

Next-Generation Compact Frequency Inverter for High Performance and Long-Term Reliability

The Mitsubishi Electric FR-D700 Series represents the next generation of compact inverters designed for unmatched reliability, precision, and performance. Built to meet the needs of modern automation, this series offers a compact, lightweight design while incorporating Mitsubishi’s advanced motor control technologies.

Key Features

Compact inverter for simple, cost-effective motor speed control.
150% starting torque at 1 Hz for powerful motor startup.
Built-in Safe Torque Off (STO) for operator protection.
Optimal Excitation Control for reduced power consumption.
Long-life components — up to 10 years of continuous service.
Easy installation with spring clamp terminals and bookshelf mounting.
Built-in PID control for process automation.
Sensorless vector control ensures smooth and stable operation.
Integrated RS-485 communication supporting Modbus-RTU and Mitsubishi protocols.
Conformal coated boards for superior dust and humidity protection.

Technical Specifications

Input Voltage1-Phase 230V AC / 3-Phase 400V AC

Power Range0.1kW to 7.5kW

Control MethodV/F Control, Sensorless Vector Control

Starting Torque150% at 1Hz

Safety FunctionSafe Torque Off (EN 61800-5-2 Compliant)

Energy EfficiencyOptimal Excitation Control (OEC)

CommunicationRS-485 (Modbus-RTU / Mitsubishi Protocol)

ProtectionOvercurrent, Overvoltage, Overload, Stall Prevention

Cooling SystemSealed Long-Life Cooling Fan

Environment-10°C to +50°C, 90% RH (Non-Condensing)

CertificationsCE, UL, cUL, RoHS

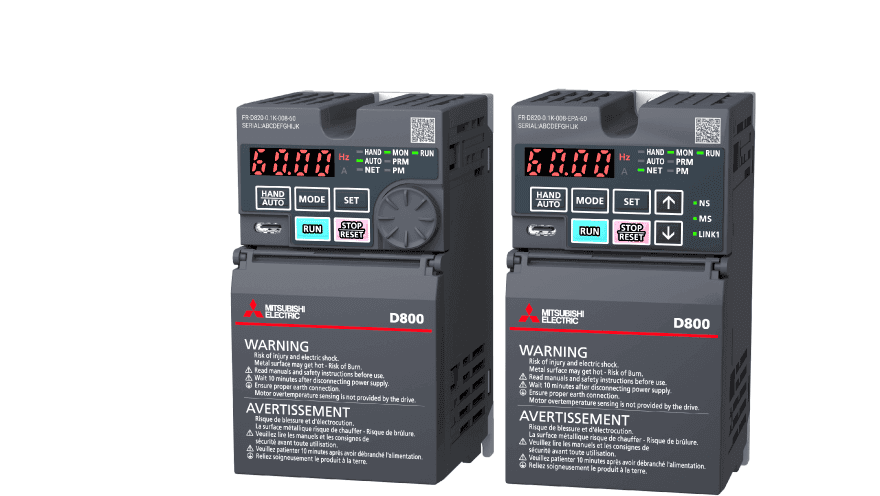

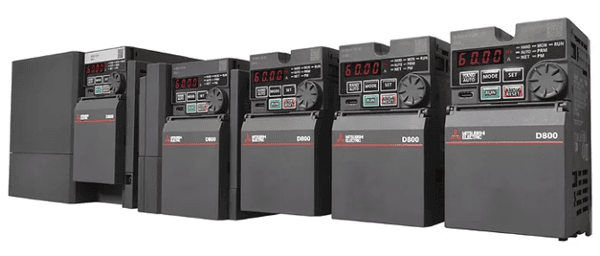

MITSUBISHI FR-D800 SERIES

Premium Compact Inverter with Advanced Safety, Connectivity, and Energy Optimization

The Mitsubishi Electric FR-D800 Series is the evolution of the popular FR-D700, bringing advanced control, enhanced safety, and expanded connectivity in a compact package. Engineered for intelligent motor management, the FR-D800 is suitable for a wide range of applications — from HVAC and pumping systems to conveyors, elevators, and industrial production equipment.

Key Features

Successor to the FR-D700 with improved motor control and safety.
Dual-channel Safe Torque Off (STO) meeting Cat.3 PLe safety standards.
Enhanced EMC filter and harmonic suppression built in.
Advanced energy-saving algorithms delivering up to 20% improved efficiency.
Dual rating: Normal and Heavy-duty operation for flexible applications.
Multiple communication interfaces: RS-485, USB, and Ethernet.
Supports Modbus-RTU and Mitsubishi inverter protocols.
Simple setup with FR Configurator2 software.
Compact design for easy panel integration and space savings.
Maintenance-friendly structure with replaceable cooling fan unit.

Technical Specifications

Input Voltage3-Phase 400V AC / 1-Phase 230V AC

Power Range0.1kW to 15kW

Control MethodV/F Control, Advanced Sensorless Vector Control

EfficiencyUp to 20% Improved Energy Performance

Safety FunctionDual Channel STO (EN ISO 13849-1 Cat.3 PLe)

CommunicationRS-485 / Ethernet / USB

DisplayMulti-language LED Digital Display

CoolingLong-life Removable Cooling Fan

InstallationBook-mount Compact Type with Integrated Filter

Operating Temperature-10°C to +50°C

CertificationsCE, UL, cUL, EAC, RCM, RoHS
