HMI

The GOT SIMPLE SERIES by Mitsubishi Electric provides reliable, cost-effective Human Machine Interfaces (HMIs) for real-world industrial needs. The series features advanced TFT color displays, wide communication compatibility, and IP65F protection, ensuring easy operation, durability, and performance in automated environments.

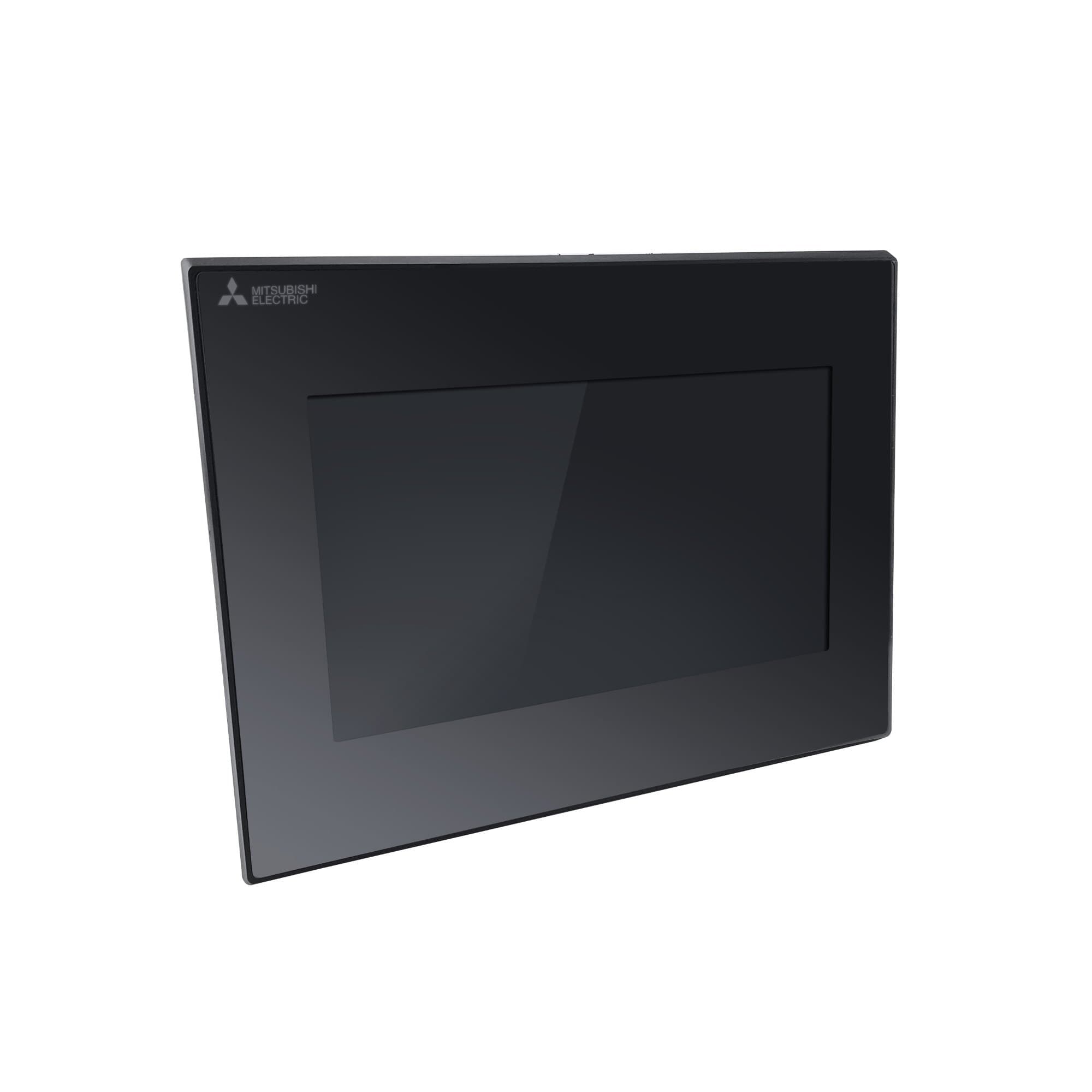

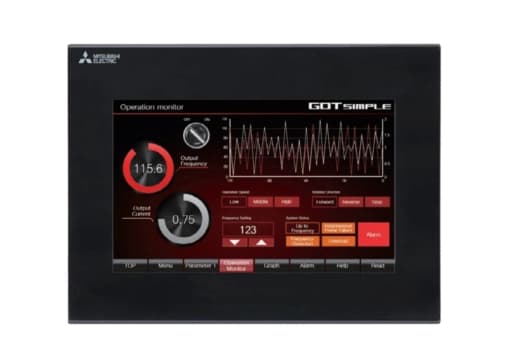

GS2107-WTBD-N (7-inch HMI)

The Mitsubishi Electric GS2107-WTBD-N is a 7-inch TFT LCD HMI from the GOT SIMPLE Series — designed to simplify operation and boost efficiency across a wide range of industrial automation applications. Compact yet powerful, this HMI delivers intuitive operation, superior display quality, and versatile communication options.

Key Features

7-inch WVGA TFT LCD color display with 65,536 colors.
High resolution (800 × 480) for clear visualization.
Ethernet, RS-232, and RS-422/485 communication interfaces.
Front panel protection rated IP65F for industrial durability.
Integrated USB host/device ports for easy data transfer.
Built-in 15 MB internal memory with SD card slot for data logging.
Intuitive project setup with GT Works3 software.
Supports Modbus, CC-Link, and Mitsubishi PLC direct connection.
Compact size for space-saving installation.

Technical Specifications

Display Size7 inches (WVGA)

Resolution800 × 480 pixels

Display TypeTFT Color LCD (65,536 colors)

CommunicationEthernet, RS-232, RS-422/485, USB

Power Supply24V DC ±10%

Internal Memory15 MB + SD card slot

Protection RatingIP65F (Front Panel)

Operating Temp0°C to +50°C

MountingPanel Mount

SoftwareGT Works3

Product Dimensions & Weight

Width189 mm

Height136 mm

Depth56 mm

Weight1.1 kg

Conformity

CECOMPLIANT

UL/cULCOMPLIANT

EACCOMPLIANT

UKCACOMPLIANT

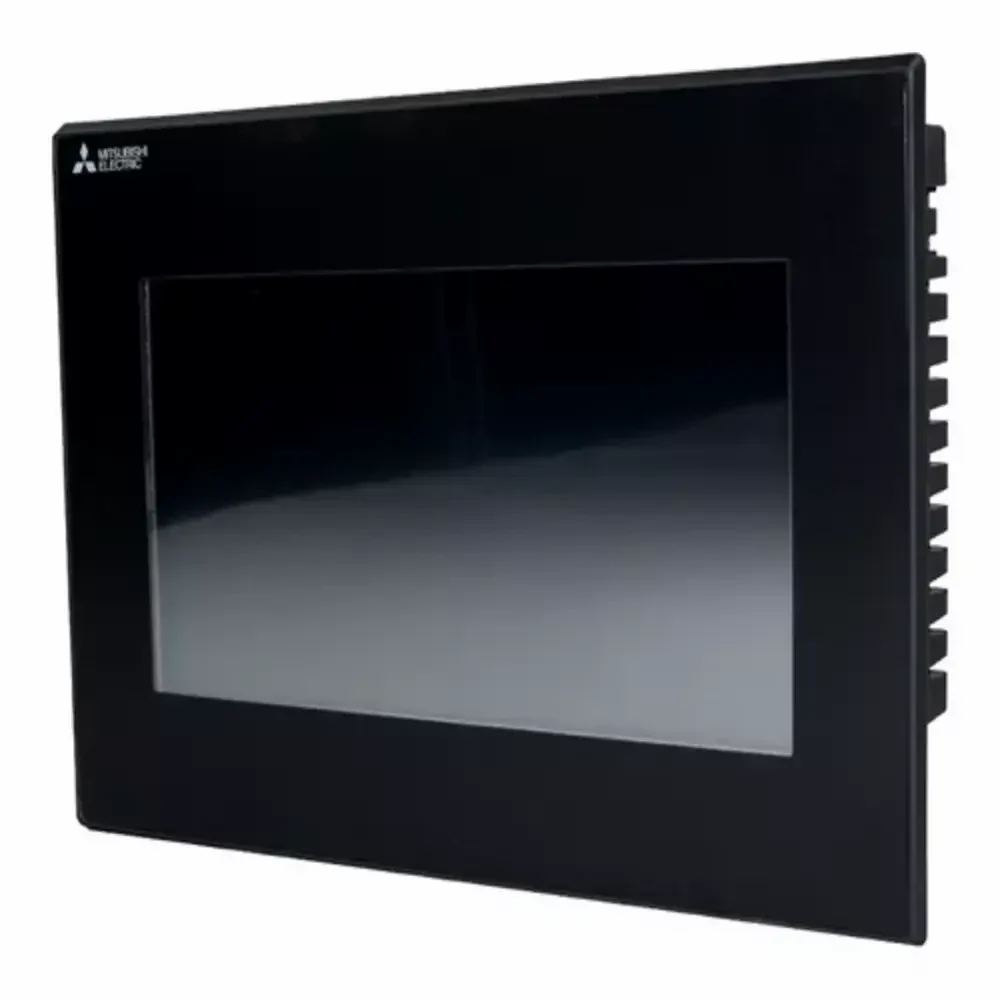

GS2110-WTBD-N (10-inch HMI)

The Mitsubishi Electric GS2110-WTBD-N is a 10-inch widescreen HMI from the GOT SIMPLE Series, designed for enhanced visualization and advanced control applications. It offers an expanded view area with superior image clarity, making it ideal for complex systems and large-scale industrial panels.
