Finger CNC Controller

Model : 300TA1-H , 400MA1-H , 600MB2-H , 800MB2-H

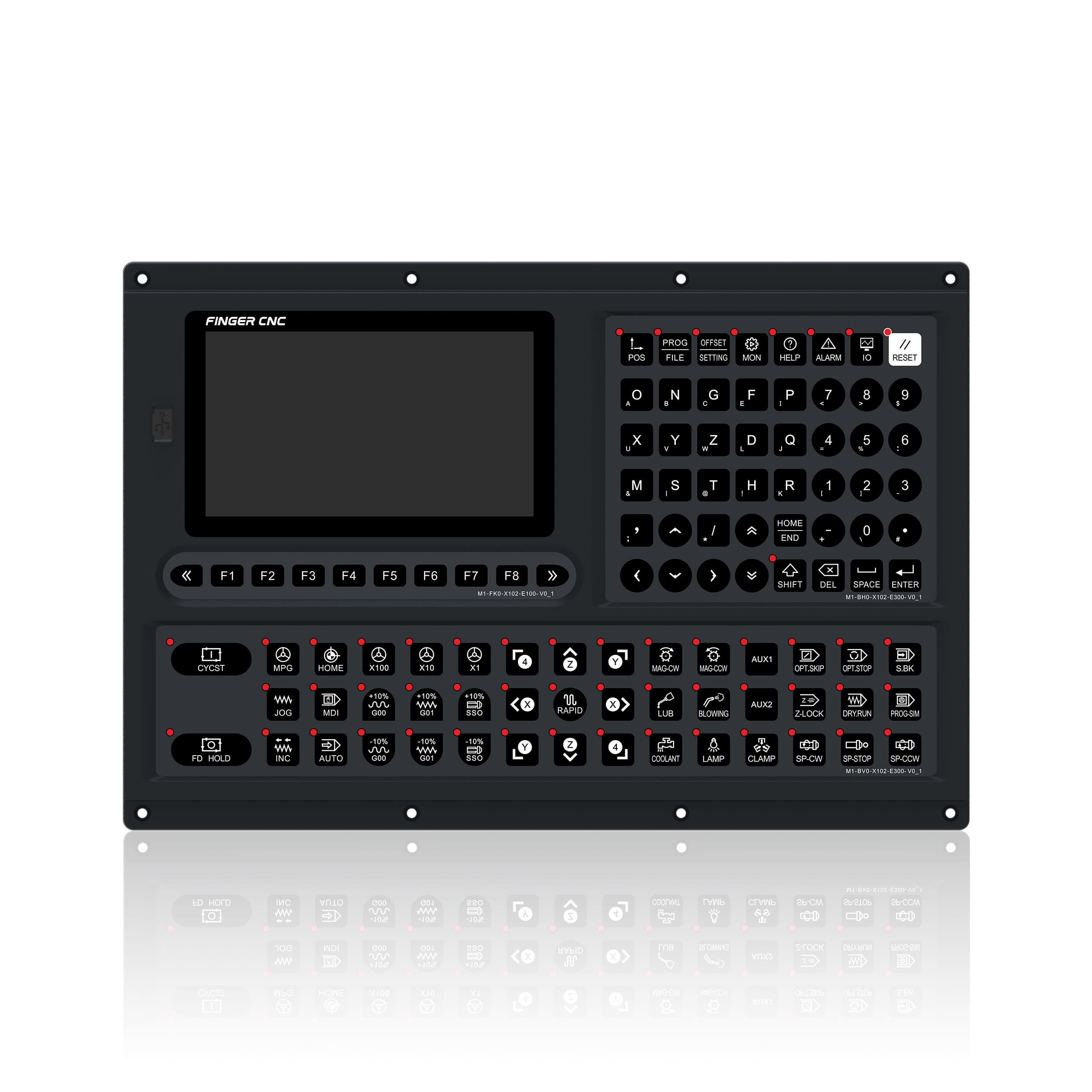

B Series CNC Front View

B Series CNC Front View

B Series CNC Front View

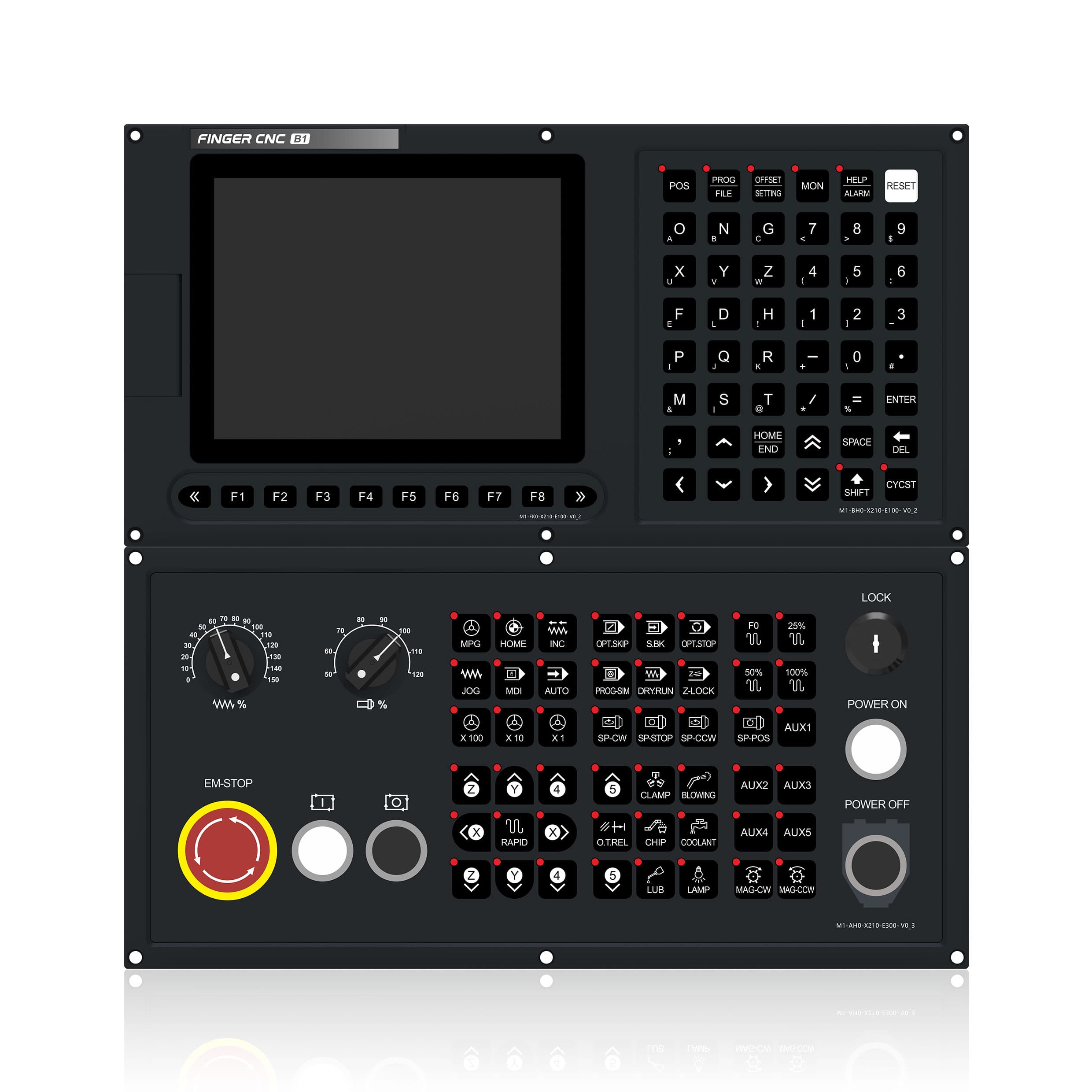

7-Inch CNC Display Panel

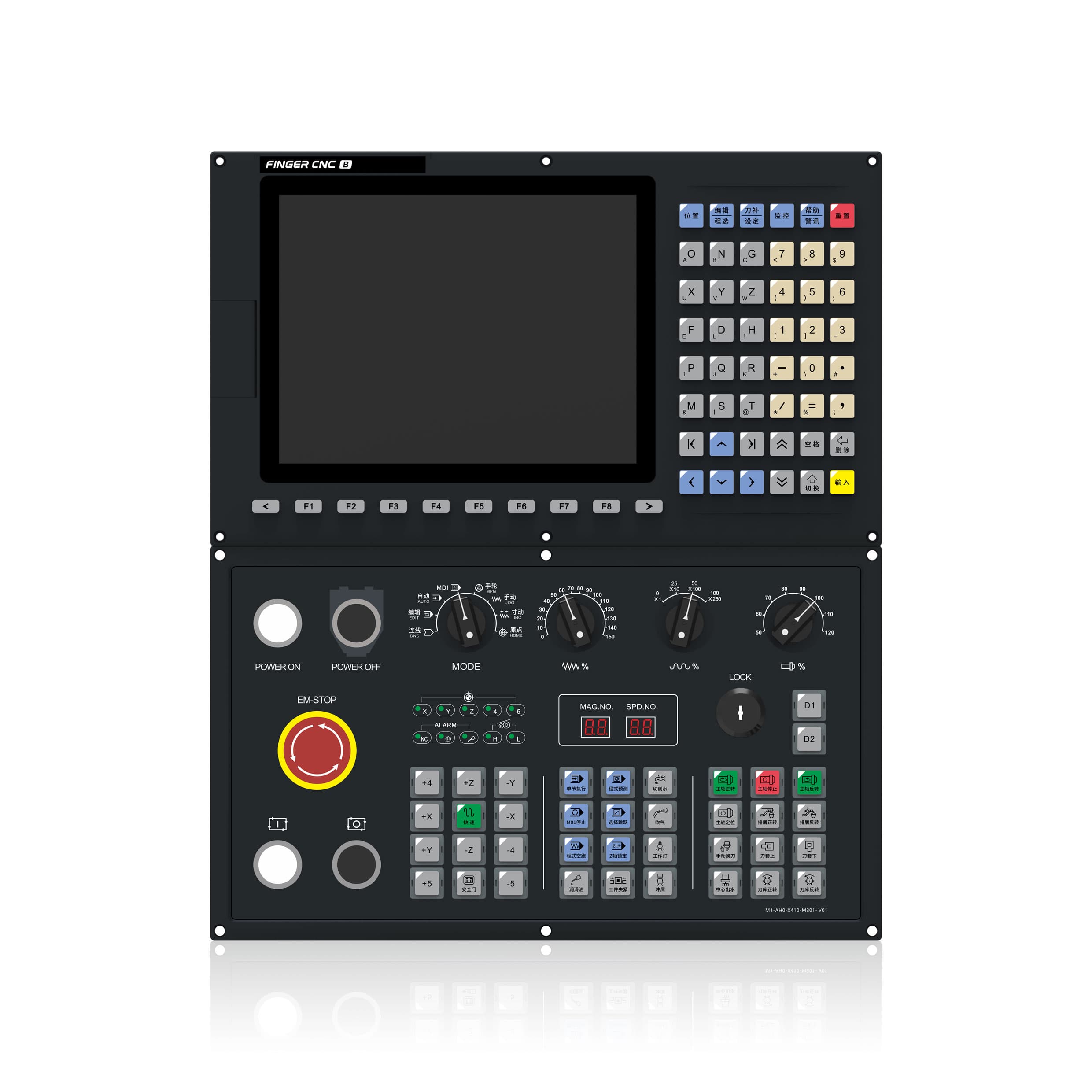

Milling System Controller

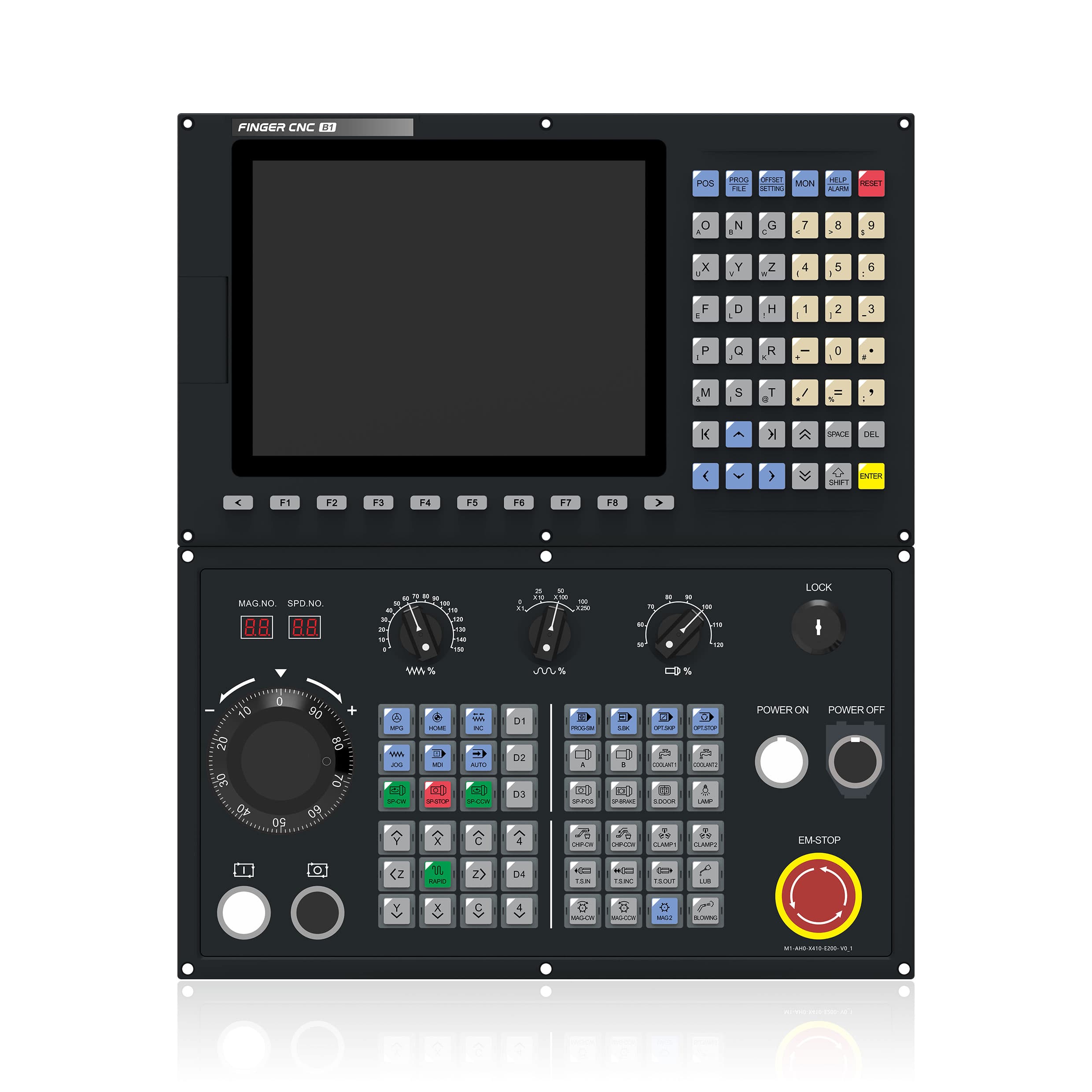

Milling System Controller

Product Introduction

High-definition LCD display.
Supports 3 or 4-axis CNC milling control (XYZ or XYZ + 4th axis).
Graphical conversational programming for easy operation.
Comprehensive machining modes including drilling, reaming, tapping, countersinking, boring, and milling various hole sizes.
EtherCAT or MECHATROLINK-III bus for enhanced real-time control.
Optional IoT support for real-time machining data access.

Hardware Overview

Multi-core CPU with high-performance computing capability.
Equipped with 2GB storage for smooth execution.
4.5KV EFT anti-interference design, CE certified.
Supports RS485 communication for reliable expansion.
High-speed USB 3.0 for fast data backup and import.
Power-off data retention ensures reliability.
High-resolution color display with clear visuals.
Maximum I/O support up to 32 points.
Program block pre-read speed up to 1000 Blocks/s.
Auxiliary panel with rotary feedrate switch and tool display for easy use.

Software (Function) Overview

RT-Linux embedded control system platform.
Fully compiled execution modules.
Configurable IoT development and remote assistance.
Platform-based modular design.
64-bit high-speed contour control.
Graphical conversational program editing.
Constant feedrate for parabolic and spline curves for smooth finishes.
Short PLC scan time for fast machining responses.
Supports labeled milling machines, tool compensation, and gantry axes.
Compatible with umbrella, disc-type, and servo-driven tool changers.

Special Features

Adjustable tapping retract speed up to 300% for faster operation.
Automatic error recovery during abnormal tapping.
Overlapping drill-tap cycle increases efficiency by 10%.
Real-time tapping monitoring for efficient setup and safety.
